Metafields - Matrixify App

Metafields for Import and Export

Matrixify app allows you to bulk manage, export, import, and update almost all entity Metafield values that Shopify supports natively:

Product Metafields
Product Variant Metafields
Smart Collection Metafields
Custom Collection Metafields
Customer Metafields
Order Metafields
Draft Order Metafields
Company Metafields
Company Location Metafields
Page Metafields
Blog Post Metafields
Shop Metafields (These are Metafields that are attached to your Shop itself. They cannot be seen in admin natively and do not have definitions in Shopify).

Metafield values are managed within the entity they exist in, for example, to export or import B2B Company Metafields, you would need to do this through the Companies export/import sheet.

Read the Matrixify tutorial on how to bulk export, import, and update Shopify custom Metafields.

Column Names

Metafield column headers are constructed in the following template: Metafield: namespace.key [type].
The column will start with Metafield: except for Variant Metafields where it will start with Variant Metafield: .

Namespace and key

After this, the column header will have the namespace.key combination which is used to identify the Metafield that is being imported.

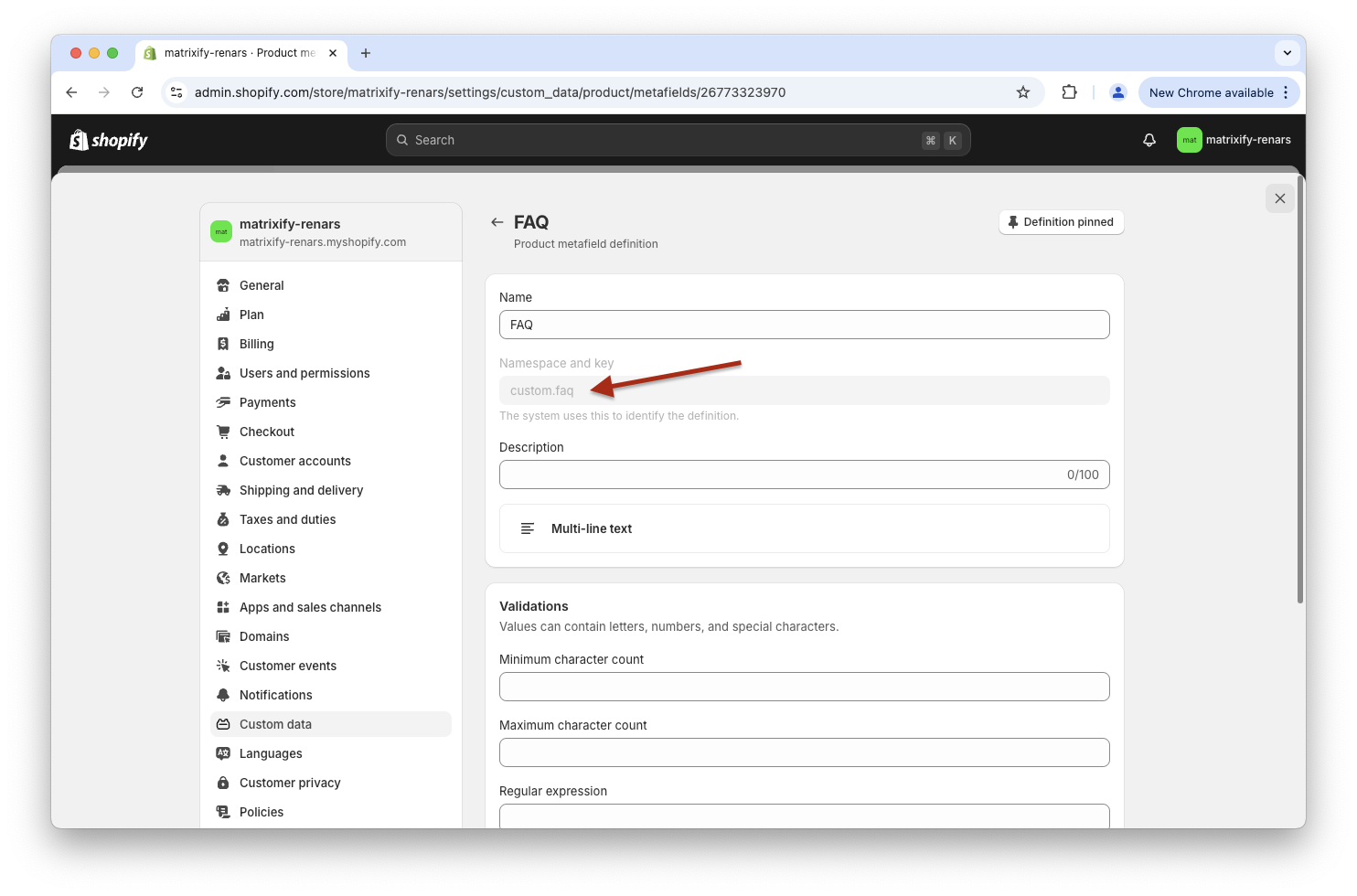

If Metafield definitions have been set up in the store, then you can see the Metafields namespace and key in that definition:

If there is no namespace defined in the column header, then the global namespace is used.

You can have almost unlimited Metafields per item – just add them as additional columns.
If there is a dot already in Metafields namespace or key then in the exported and import files it is escaped with a backslash: \..

Metafield type

The last part of the Metafield column header is the Metafield type. It is always set in square brackets [].
You can also import Metafield column without the type specified. In that case, Matrixify app will try to find a definition with that namespace and key and assume the type from it.

When exporting Metafields – in Excel those types will be reflected as cell value types. If the value is a number_integer type, then in the Excel cell that will also be visible as an integer. And if that’s a single_line_text_field, then, of course, it will also be visible as a text type, even if it will contain a numeric value.

Example columns headers with specified types:

for number_integer: Metafield: specs.mu_number [number_integer]
for boolean: Metafield: specs.is_it_cool [boolean]
for product_reference: Metafield: specs.other_products [product_reference]
etc…

Each Metafield for each item can have one of the types:

All Metafield Types

We have compiled all possible Metafield types to see what is the correct type value to use in the import file and an example of the value that would need to be set to import.

You can also see Shopify Metafields manual page for metafield type descriptions.

Date and Time

Type	Description / Example Value
date	A date in ISO 8601 format without a presumed timezone. Allowed Values Date Example 2021-10-25
date_time	A date and time in ISO 8601 format without a presumed timezone. Allowed Values Text Example 2021-10-25T14:30:00

Type

Description / Example Value

date

A date in ISO 8601 format without a presumed timezone.

Allowed Values

Date

Example

2021-10-25

date_time

A date and time in ISO 8601 format without a presumed timezone.

Allowed Values

Text

Example

2021-10-25T14:30:00

Measurement

Type	Description / Example Value
weight	A value and a unit of weight. Valid unit values: `oz`, `lb`, `g`, `kg` Allowed Values JSON Example { "unit": "kg", "value": 2.5 }
list.weight	A laist of value and a unit of weight combinations in JSON format. Valid unit values: `oz`, `lb`, `g`, `kg` Allowed Values JSON Example [{"value":1100.0,"unit":"g"},{"value":600.0,"unit":"kg"}]
volume	A value and a unit of volume. Valid unit values: `ml`, `cl`, `l`, `m3` (cubic meters), `us_fl_oz,` `us_pt`, `us_qt`, `us_gal`, `imp_fl_oz`, `imp_pt`, `imp_qt`, `imp_gal`. Allowed Values JSON Example { "unit": "ml", "value": 20.0 }
list.volume	A list of values and a unit of volume combinations in JSON format. Valid unit values: `ml`, `cl`, `l`, `m3` (cubic meters), `us_fl_oz,` `us_pt`, `us_qt`, `us_gal`, `imp_fl_oz`, `imp_pt`, `imp_qt`, `imp_gal`. Allowed Values JSON Example [{"value":1.0,"unit":"ml"},{"value":0.001,"unit":"l"}]
dimension	A value and a unit of length. Valid unit values: `in`, `ft`, `yd`, `mm`, `cm`, `m` Allowed Values JSON Example { "unit": "cm", "value": 25.0 }
list.dimension	A list of value and a unit of length combinations in JSON format. Valid unit values: `in`, `ft`, `yd`, `mm`, `cm`, `m` Allowed Values JSON Example [{"value":1000.0,"unit":"mm"},{"value":54.0,"unit":"mm"}]

Number

Type	Description / Example Value
number_integer	A whole number in the range of from `-9007199254740991` till `9007199254740991`. Will round decimal numbers. Allowed Values Number Example 10
list.number_integer	A list of whole numbers in the range of from `-9007199254740991` till `9007199254740991`. In this field, you need to add a list of numbers in JSON format. Allowed Values Text Example [8,2,3]
number_decimal	A number with decimal places in the range from `-9999999999999.999999999` till `9999999999999.999999999`. Allowed Values Number Example 10.545
list.number_decimal	A list of numbers with decimal places in the range from `-9999999999999.999999999` till `9999999999999.999999999`. In this field, you need to add a list of numbers in JSON format. Allowed Values Text Example ["1.123","2.545","3.987"]

Text

Type	Description / Example Value
single_line_text_field	A single-line text field. Will not allow importing text with line breaks/newlines in it. Allowed Values Text Example This item contains dairy products.
list.single_line_text_field	A single-line text Metafield with “Accept list of values” selected in the definition. Will not allow importing text with line breaks/newlines in it. Allowed Values JSON array Example ["this","is","list", "with 4 list values"]
multi_line_text_field	A multi-line text field. Allowed Values Text Example Ingredients: Flour Water Milk Eggs
rich_text_field	Rich text field. Allowed Values JSON Example {"type":"root", "children":[{"type":"heading", "children":[{"type":"text", "value":"Text with formatting"}], "level":3}, {"type":"paragraph", "children":[{"type":"text", "value":"This is "}, {"type":"text", "value":"text with formatting", "italic":true}]}, {"type":"paragraph", "children":[{"type":"text", "value":"in multiple rows"}]}]}

Reference

Type	Description / Example Value
product_reference	A reference to a product from this online store. When exporting, the value will show as a product Handle. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both products Handle and Shopify Product GID. Allowed Values Text Example summer-jacket
list.product_reference	A reference to a product from this online store. When exporting, the value will show as a product Handle. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both products Handle and Shopify Product GID. Allowed Values Text Example summer-jacket, winter-coat, colorful-shirt
collection_reference	A reference to a collection from this online store. When exporting, the value will show as a collection Handle. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both collection Handle and Shopify collection GID. Allowed Values Text Example summer-sale-collection
list.collection_reference	A reference list of collections from this online store. When exporting, the value will show as a collection Handle. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both collection Handle and Shopify collection GID. Allowed Values Text Example summer-sale-collection, branded-clothes
variant_reference	A reference to a product variant from this online store. When exporting, the value will show as `product_handle.variant title`. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both `product_handle.variant title` and Shopify variant GID. Allowed Values Text Example summer-shirt.Red Small
list.variant_reference	A reference to a product variant from this online store. When exporting, the value will show as `product_handle.variant title`. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both `product_handle.variant title` and Shopify variant GID. Allowed Values Text Example summer-shirt.Red Small, summer-hoodie.XL
file_reference	A reference to a file from this online store. When exporting, the value will show as a file name. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both file name and Shopify file GID. Allowed Values Text Example 1230_20Single_20Door_20Wall.jpg
list.file_reference	A reference to a file from this online store. When exporting, the value will show as a file name. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both file name and Shopify file GID. Allowed Values Text Example 1230_20Single_20Door_20Wall.jpg, 50002-102-02.jpg
metaobject_reference	A reference to a metaobject entry from this online store. When exporting, the value will show as a `metaobject.entry`. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both `metaobject.entry` and Shopify metaboject entry GID. Allowed Values Text Example manufacturer.Robert-Jones
list.metaobject_reference	A reference to a metaobject entry from this online store. When exporting, the value will show as a `metaobject.entry`. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both `metaobject.entry` and Shopify metaboject entry GID. Allowed Values Text Example manufacturer.Robert-Jones, manufacturer.July-Smith
page_reference	A reference to a page from this online store. When exporting, the value will show as a page Handle. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both page Handle and Shopify Product GID. To reference page outside of this store, use the URL field. Allowed Values Text Example about-us
list.page_reference	A reference to a page from this online store. When exporting, the value will show as a page Handle. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both page Handle and Shopify Product GID. To reference page outside of this store, use the URL field. Allowed Values Text Example about-us, contact-us
order_reference	A reference to order from this online store. When exporting, the value will show as an order name. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both an order name and Shopify order GID. Allowed Values Text Example #1234
customer_reference	A reference to a customer from this online store. When exporting, the value will show as a customer email. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID). When importing, you can use both a customer email and Shopify customer GID. Allowed Values Text Example [email protected]

Other

Type	Description / Example Value
color	The hexadecimal code for a color. Allowed Values Text Example #fff123
list.color	A list of hexadecimal codes for a color. Allowed Values JSON Example ["#44b144","#ff0000"]
money	Amount of money in specific currency. Allowed Values JSON Example {"amount":"15.0","currency_code":"EUR"}
rating	A rating measured on a set scale. Allowed Values JSON Example { "value": "3.5", "scale_min": "1.0", "scale_max": "5.0" }
list.rating	A of ratings each measured on a set scale. Allowed Values JSON Example [{ "value": "3.5", "scale_min": "1.0", "scale_max": "5.0" },{ "value": "9.0", "scale_min": "1.0", "scale_max": "10.0" }]
boolean	A true or false value. Allowed Values TRUE FALSE Example TRUE
url	A URL with one of the allowed schemes: `https`, `http`, `mailto:`, `sms:`, `tel:`. Allowed Values Text Example https://matrixify.app/
list.url	List of URLs with one of the allowed schemes: `https`, `http`, `mailto:`, `sms:`, `tel:`. Allowed Values JSON Example ["https://matrixify.app/","https://shopify.com/"]
link	A link with text. Links value must be prefixed with: `https`, `http`, `mailto:`, `sms:`, `tel:`. Allowed Values JSON Example {"text":"Matrixify Tutorials page","url":"https://matrixify.app/tutorials/"}
list.link	A list of links with text. Links value must be prefixed with: `https`, `http`, `mailto:`, `sms:`, `tel:`. Allowed Values JSON Example [{"text":"Matrixify website","url":"https://matrixify.app"},{"text":"Shopify website","url":"https://shopify.com"}]

Advanced

Type Description / Example Value

Type	Description / Example Value
json	A JSON-formatted string. Allowed Values JSON Example [{ "k": "v1" }, { "k": "v2" }]
mixed_reference	A reference to a metaobject entry from this online store. Can be used to specify entries from multiple different metaobjects.When exporting, the value will show as a `metaobject.entry`. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID).When importing, you can use both `metaobject.entry` and Shopify metaboject entry GID. Allowed Values Text Example manufacturer.Robert-Jones, style.Summer

json

A JSON-formatted string.

Allowed Values

JSON

Example

[{ "k": "v1" }, { "k": "v2" }]

mixed_reference

A reference to a metaobject entry from this online store.
Can be used to specify entries from multiple different metaobjects.When exporting, the value will show as a metaobject.entry. (Can ask Matrixify Support to set up for specific store to export reference Metafields as Shopify internal GID).When importing, you can use both metaobject.entry and Shopify metaboject entry GID.

Allowed Values

Text

Example

manufacturer.Robert-Jones, style.Summer

Deprecated/old metafield types

If importing Metafield with the below listed old types, app would primarily check if there is Metafield definition in the store with he same Namespace and Key and if found then use the type from the definition ignoring the old type specified in the file.

Type	Description / Example Value
integer	A number. Allowed Values Number Example 10
string	A text. Allowed Values Text Example This is red shirt.
json_string	JSON format code. Allowed Values JSON Example [{ "k": "v1" }, { "k": "v2" }]

Type

Description / Example Value

integer

A number.

Allowed Values

Number

Example

string

A text.

Allowed Values

Text

Example

This is red shirt.

json_string

JSON format code.

Allowed Values

JSON

Example

[{ "k": "v1" }, { "k": "v2" }]

Cell Values

Each row cell is a Metafield value of that respective Metafield column.

In Shopify – Metafields are actually not columns, they are entries for each separate item. There can be some items with Metafields, and some without.

If the exported Metafield value is empty, then it means that this Metafield doesn’t exist. Shopify cannot have Metafields with empty values.

When the Metafield is imported:

If there is some value, then it will either create or update the existing Metafield in Shopify.
If the value is empty, then this Metafield for that item will be deleted (not set to empty value, but deleted).

Deleting Metafields

To delete Metafields, just set all values to empty, and import it.

Metafield Examples

Column Name	Description
Metafield: title_tag	SEO Title If the value will match exactly the same Product (or Collection) Title, then Shopify stores it as an empty value. Also, if the value is empty, then Shopify will serve SEO Title the same as Product (or Collection) Title. Therefore – SEO Title is never empty. When exporting, you will have some value only if it differs from the Product (or Collection) Title. Allowed Values Text Example Mom Strength Red T-shirt Slim Fit
Metafield: description_tag	SEO Description If the value will match exactly the same Product Description, then Shopify stores it as an empty value. Also, if the value is empty, then Shopify will serve SEO Description the same as Product Description. Therefore – SEO Description is never empty if Product has some description at all. When exporting, you will have some value only if it differs from the Product (or Collection) Description. Allowed Values Text Example Those t-shirts are the best ones for smart moms.
Metafield: some number	If you set the value in Excel as a number, it will be automatically saved as “integer” type. Allowed Values Text or Number Example 234876234
Metafield: namespace.name	If column name starts with “Metafield: “, then what comes next is treated as Metafield name. To set the namespace, prefix it before the name, and “.” (dot). If a namespace is not set, then it will be set to “global”. If column name has “[string]” or “[integer]” at the end, then it will force the type accordingly from that. If the Metafield value is empty, then it will not be updated at all – this item Metafield will be ignored. Allowed Values Text or Number Example Anything can be written here.
Metafield: birthday	If you want to save Customer birthdate, and use it in the Store. Allowed Values Text or Number Example 1980-11-18

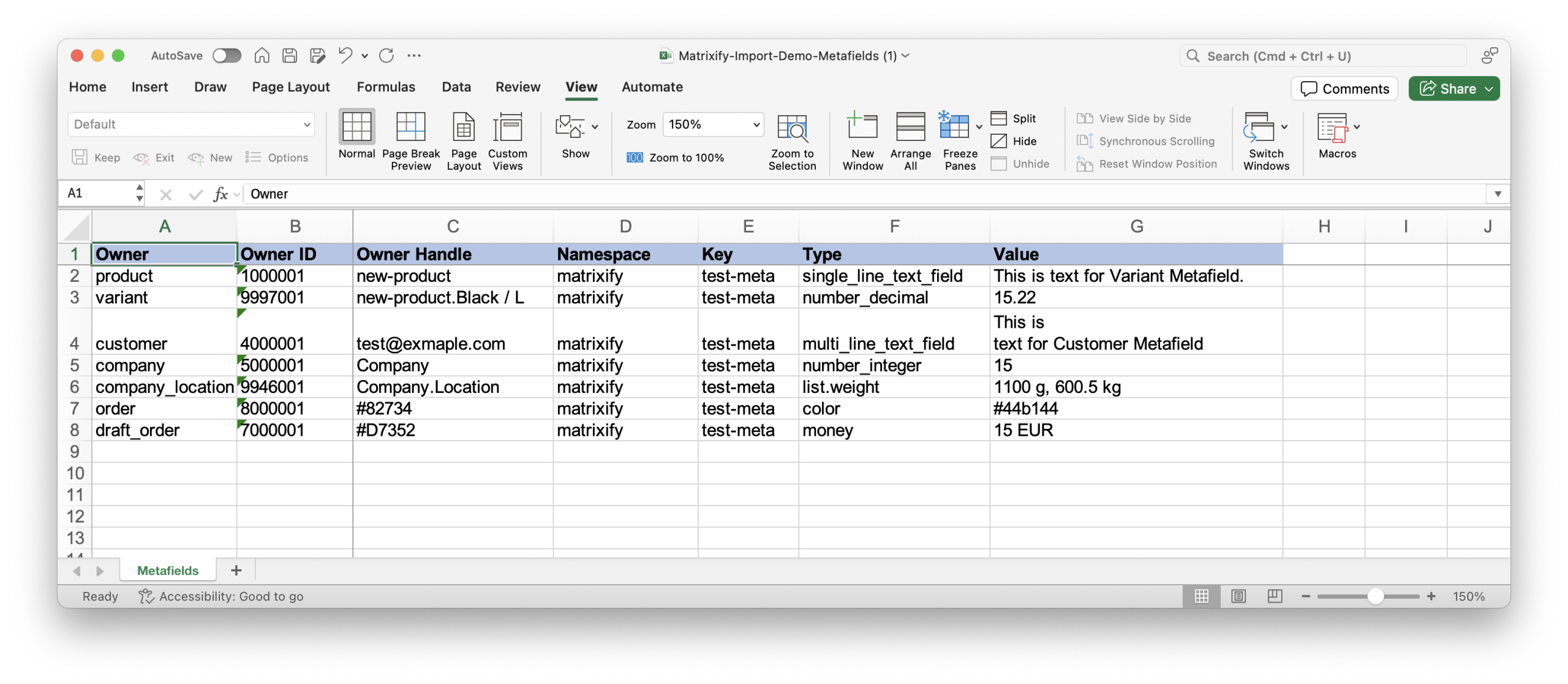

Import Metafields by row

Matrixify app in export and import primarily uses Metfields by columns as explained above.
You can also import Metafields by row.

Metafields by row can also be mixed with Metafield columns from Matrixify template.

Column Name	Description
Metafield Namespace	A container for a set of metafields. You should define a custom namespace for your metafields to distinguish them from namespaces used by apps and Shopify (including the default `global`).
Metafield Key	The name of the metafield.
Metafield Value	The information to be stored as metadata. This column is required when other metafield columns are included.
Metafield Value Type	The metafield’s information type. See Metafield Types for valid type values.

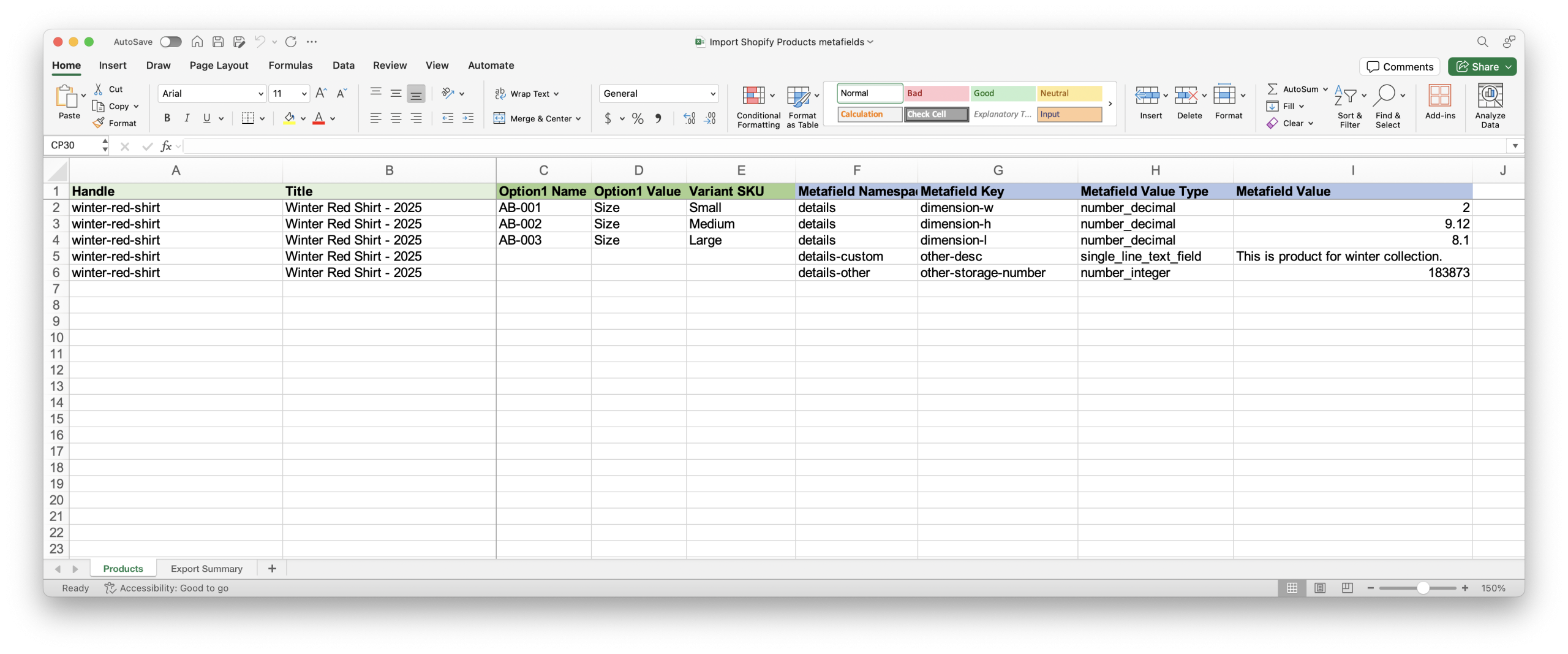

For Products – this way you can import both Product and Variant Metafields. If the row is for Variant then app will save that Metafield as Variant Metafield, if there is no variant in the row then the app will save it as product Metafield. If you need to have multiple Metafields for the same variant then copy whole variant row for each additional Metafield row (or use Metafield columns from Matrixify template).
Above example, each variant would have 1 Metafield and the product itself would have 2 other Metafields.

Metafield values with more than 32767 characters

The problem

Microsoft Excel has some limitations that can sometimes cause trouble when working with large amounts of data. One of those limitations is 32767 character limit for a single cell.

Multiple other apps use Metafields to store various information and it can get quite large over time. If some Metafield value is over this Excel limit of 32767 characters, then it will still be all exported, but when opening the file in Excel it will first display error:

"We found a problem with some content in 'Export_2019-06-18_1659.xlsx'. Do you want us to try to recover as much as we can?".

When Excel has recovered the data it will cut all cell values over the limit to 32767 characters. Saving this file and importing back into the Shopify will result in the Metafield being saved with these 32767 characters, thus cutting the rest off information in that cell.

Note that it will cut it off only if you open the exported .xlsx or .csv file in Excel, and save it. If you will not save the file, and import it by just exporting, then nothing will be cut off – you will be all good.

Solution

We have made the Matrixify app to locate this possible issue and not update any Metafields whose values are exactly 32767 characters (the cut-off cell size).

If the cell value is over 32767 Characters that means that Excel has not cut it and it’s good to import.
If the cell value is under 32767 Characters that again means that Excel has not forcefully cut anything and Metafield will bet set/updated as usually.

Once the Matrixify will detect Metafield with this exact length it will not fail the item, but in the Import Results file a warning will be returned:

"Warning: [Metafield: namespace.key [type]] is not saved. It may be cut off by the Excel because of the 32767 character limit."

Good To Know

To update existing Metafields or add new, minimum required columns are:
1. ID
2. Handle (if you want it to identify item by Handle)
3. Metafield: ****
When importing Metafields that you will need to use in definitions, it is best to set up the Metafield definitions first in your Shopify Admin -> Settings -> Custom Data. If definitions have not been set, then they will be imported as “Metafields without definitions”. Shopify limits what types of Metafield definitions can be created from “Metafields without definitions”, such as, you will not be able to then set up those definitions as Rich text or reference types.
The easiest way to learn Metafields is to export them and watch how they are in Excel (or in CSV). Then import them back, and see what changed. You can do those experiments with just one row.
Shopify allows probably unlimited Metafield values per item (at least we haven’t seen any real limit). If you need to export more than 10’000 columns of Metafields, then please use CSV file format because Excel will struggle with more columns.
See more about Metafields – what they are, and why there exist, in this tutorial: How to manage Shopify Metafields?
